Audi Q7: Door Inner Cover, Removing and Installing

Door Inner Cover, Removing and Installing, Versions without Closing Assist

Special tools and workshop equipment required

  • Wedge Set -T10383-

Removing

- Remove the front door trim panel. Refer to → Body Interior; Rep. Gr.70; Front Door Trim Panels; Front Door Trim Panel, Removing and Installing.

- Remove the speaker. Refer to → Communication; Rep. Gr.91; Sound System; Component Location Overview - Sound System.

- Free up the wiring harness -3-.

- Pry the door inner cover -1- out of the inner door panel -arrow- using the -T10383/1-.

- Disengage the grommet -2- for the door opener operating cable.

A57-10898

Installing

- Bring the operating cable -2- into the installation position and snap into the grommet in the hole.

- Engage the upper door inner cover -1- on the door inner cover -arrow A- and push on all around until it engages audibly -arrow B-.

  • The door inner cover must be installed flush.

Further installation is the reverse order of removal.

A57-10899

Door Inner Cover, Removing and Installing, Versions with Closing Assist

Special tools and workshop equipment required

  • Wedge Set -T10383-

Removing

- Remove the front door trim panel. Refer to → Body Interior; Rep. Gr.70; Front Door Trim Panels; Front Door Trim Panel, Removing and Installing.

- Remove the speaker. Refer to → Communication; Rep. Gr.91; Sound System; Component Location Overview - Sound System.

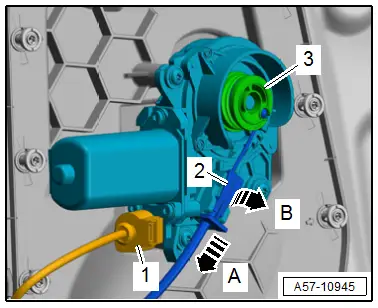

- Disconnect the connector -1-.

- Release the catch -arrow B- on the cable -2- downward from the support bracket -arrow A-.

- Disengage the cable at the closing assist motor -3-. Refer to → Chapter "Closing Assist Motor, Removing and Installing".

A57-10945

- Free up the wiring harness -4-.

- Turn the expanding pin -arrows- 180º counter-clockwise until the catch removes.

- Pry the door inner cover -1- out of the inner door panel using the -T10383/1-.

- Disengage the grommets -2 and 3- for the cable.

A57-10897

Installing

- Bring the cable into the installation position and snap into the grommets in the holes.

- Push on the door inner cover -4- until it engages and secure using the expanding pins -3-.

  • The tab -2- must point to the arrow mark -1-.
  • The door inner cover must be installed flush.

- Install the cable for the closing assist motor. Refer to → Chapter "Closing Assist Motor, Removing and Installing".

Further installation is the reverse order of removal.

A57-10947
